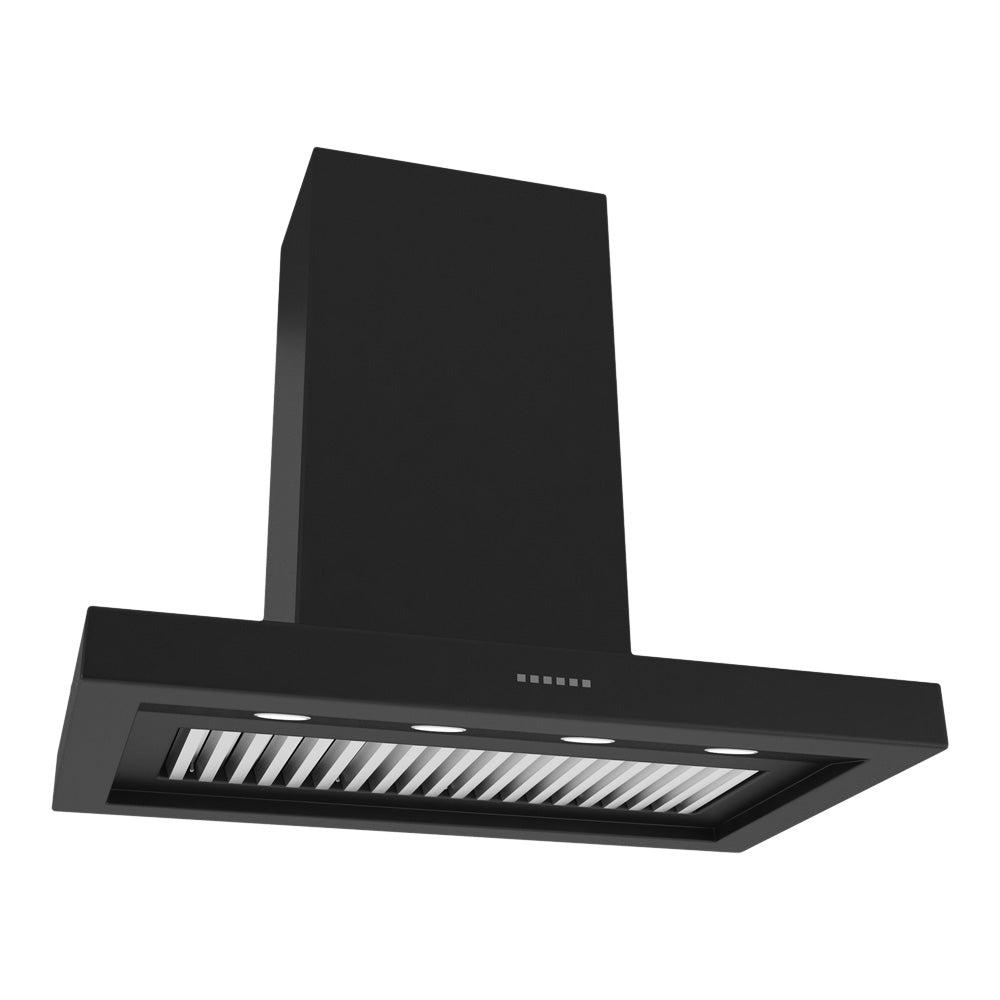

1200mm BBQ Canopy Rangehood in Black (SMARH120B)

$3,199.00
$3,199.00
Save 0
  • SKU:
    SMARH120B

The Alfresco rangehood in black is the perfect addition to your outdoor entertaining area, or over your high-powered cooktop. It features twin Green Energy onboard motors providing extra extraction where you need it.

The marine-grade stainless steel is designed to stand up against the harshest of coastal environments, adding extra protection for outdoor use. Additional features include 25mm Baffle filters, bright LED lighting, button controls, 10 minute run-on timer to clear the air after cooking, and extra deep coverage to ensure you're cooking area receives the best extraction. Suited for BBQs, gas or induction cooking, it offers powerful performance with quiet operation.

Product Features

Features & Benefits

  • Powerful Air Extraction: With its European made motor, this rangehood has impressive airflow to quickly and effectively remove smoke, steam, heat, odours, and other airborne particles. Conveniently controlled with 4 speed settings.
  • Marine Grade Stainless Steel: Marine 316 grade stainless steel is designed specifically for outdoor use as it resists corrosion. Particularly important for those who live within five kilometers of the coast where levels of salt in the air can damage and reduce the lifespan of your rangehood.
  • LED Lighting: LED lights are eco-friendly and energy efficient. Their durability makes them resilient to heat, and they emit a nice, bright light, making them a perfect option for your hoods lighting.
  • Baffle Filters: Interlocking C-shaped baffles capture grease and smoke. Highly regarded for their advanced design and durability, they have a lifetime warranty. The baffles also offer flame barrier protection, keeping your ductwork safe.
  • Auto Shut Off: This rangehood comes with an automatic shut-off when the hoods been on for more than 4 hours. Not only does this help in removing all contaiminates after cooking, but automatically shuts off so you don’t have to remember.
Product Specifications

Technical Specifications

  • Product Code: SMARH120B
  • Recommended Install Height: min 1200-max 1600mm above cooking surface
  • Finish: Black 316G Marine Stainless Steel
  • Filter Type: 2x 25mm Baffle Filters
  • Noise Level: 45dBA to 70dBA
  • Lighting: 4x 6W LEDs
  • Electrical Requirement: 10AMP
  • Max Current W: 564W
  • Motor Type: Twin Onboard Green Motors
  • Motor Extraction: 2000m3/h
  • Ducting Size: 200mm
  • Total Product Dimensions: W1200x D700x H690-1130
Installation Dimensions

Installation

Do not cut your cabinetry until you have physically received your Smart Rangehood to ensure optimum results. The cutout dimensions provided are indicative only as requirements for each installation will vary. Upon receiving your Smart Rangehood, individually measure the relevant sections to ensure optimum fittings.

It is essential to thoroughly read the user manual (provided below) before installation or use of this Rangehood.

When choosing your ducting, please note that flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise levels, increase vibration and reduce airflow. Using semirigid or solid ducting should be used in lieu. We strongly recommend Sirius EasyKits and Ducting Components who have a range available to suit any application.

To install the appliance please follow these instructions:

  • Prepare the power supply - 240 volts
  • Prepare a 210mm hole for the exhaust
Gas Conversion
